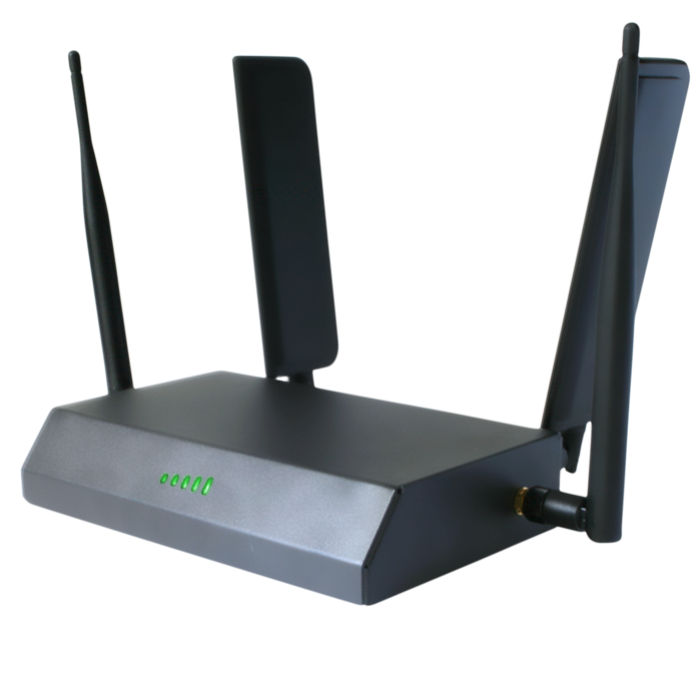

Intwine Connected Gateway

Tech Specs
- 800MHz processor
- Embedded Linux OS
- 4GB flash memory, 0.5GB DRAM
Network Specs
- 4G LTE
- 802.11 bgn
- 802.15.4 (ZigBee HA 1.2)
- Bluetooth 4.0 (BLE)
- GB Ethernet
- Customizable expansion slot
Hardware
- Intwine Development Kit $725
- Intwine Connected Gateway Included
- Intwine Serial Expansion Module Included
- Cellular Activation Included
- Static IP Included
Services
- Monthly Access $20/month (3 Months Free)
- Remote Management Portal Included
- Tier 1 Tech Support Included
- 100MB Monthly Data Included
- Additional Monthly Data $15/GB
Support
- Phone/Web Startup Support Included
- Linux OS Dev Guide Included
- Application Framework Dev Guide Included
The Intwine Connected Gateway is the core of Intwine's technology platform and enables devices to "speak" over a multitude of protocols to a single common platform. The ICG can be used out of the box as a 4G LTE router, and can be customized by users to fit specific applications.
The ICG comes preloaded with a basic Linux distribution and supported standard networking interfaces. The ICG's open Linux development environment, easily configured and customizable Python code, and room for hardware expansion make it the most configurable gateway solution on the market.
Out of the box, the gateway comes with a connection to Intwine's CloudBUS® application servers. Users can choose to leverage this connection for their cloud solution, or 'point' the gateway to their own cloud based applications.

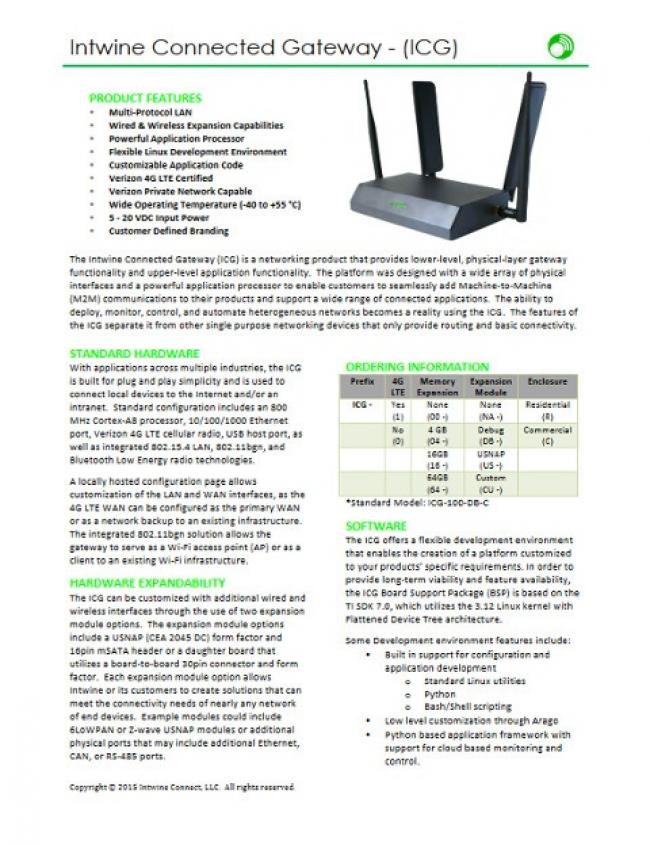

Download ICG Data Sheet
